Name: STL70N4LLF5
Brand: STMicroelectronics
SKU: STL70N4LLF5
Price: 1.69 USD
Availability: InStock

REF: STL70N4LLF5 STMicroelectronics

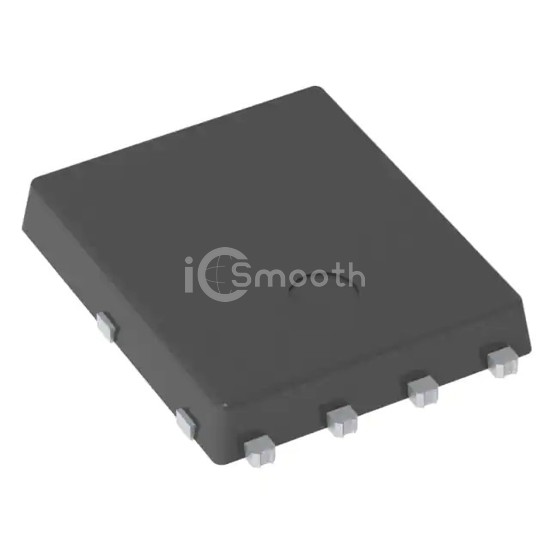

STL70N4LLF5

MOSFET N-CH 40V 70A POWERFLAT

STL70N4LLF5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 40V 70A POWERFLAT. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 1,297

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±22V
Input Capacitance (Ciss) (Max) @ Vds	1800 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	72W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	PowerFlat™ (5x6)
Package / Case	8-PowerVDFN
