Name: STL6N3LLH6
Brand: STMicroelectronics
SKU: STL6N3LLH6
Price: 0.43 USD
Availability: InStock

REF: STL6N3LLH6 STMicroelectronics

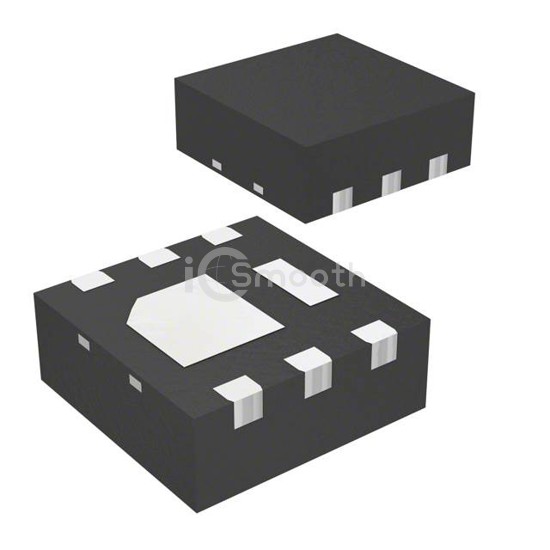

STL6N3LLH6

MOSFET N-CH 30V POWERFLAT

STL6N3LLH6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 30V POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerWDFN.

Datasheet Request a Quote

In Stock: 1,216

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	25mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	3.6 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	283 pF @ 24 V
FET Feature	-
Power Dissipation (Max)	2.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (2x2)
Package / Case	6-PowerWDFN
