Name: STL6N2VH5
Brand: STMicroelectronics
SKU: STL6N2VH5
Price: 0.46 USD
Availability: InStock

REF: STL6N2VH5 STMicroelectronics

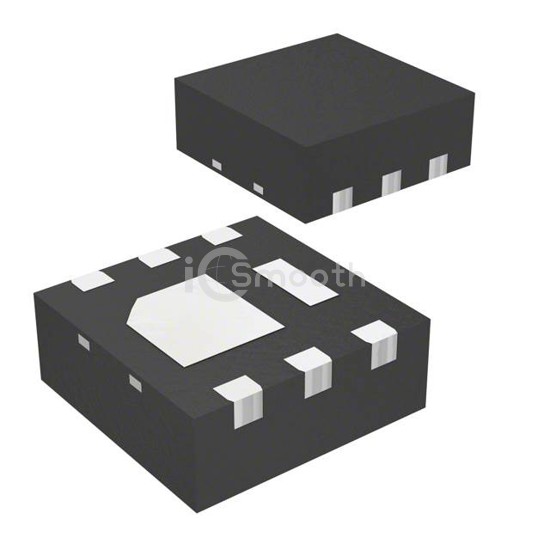

STL6N2VH5

MOSFET N-CH 20V POWERFLAT

STL6N2VH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 20V POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerWDFN.

Datasheet Request a Quote

In Stock: 6,622

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	6A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	30mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	550 pF @ 16 V
FET Feature	-
Power Dissipation (Max)	2.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (2x2)
Package / Case	6-PowerWDFN
