Name: STL60NH3LL
Brand: STMicroelectronics
SKU: STL60NH3LL
Availability: InStock

REF: STL60NH3LL STMicroelectronics

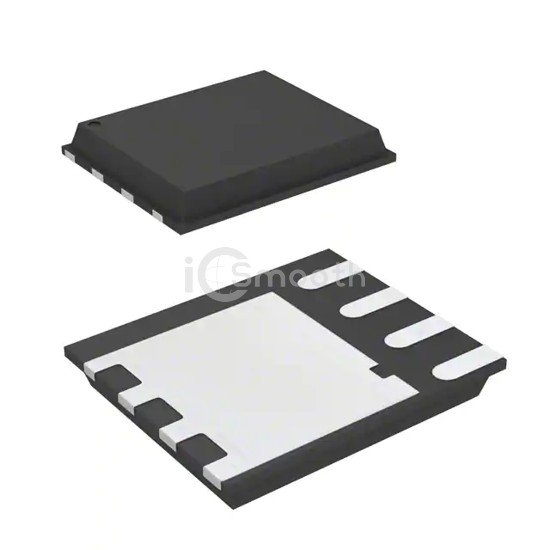

STL60NH3LL

MOSFET N-CH 30V 30A POWERFLAT

STL60NH3LL is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 30V 30A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,468

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.5mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 4.5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	1810 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	60W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6)
Package / Case	8-PowerVDFN
