STL57N65M5

In Stock: 3,711

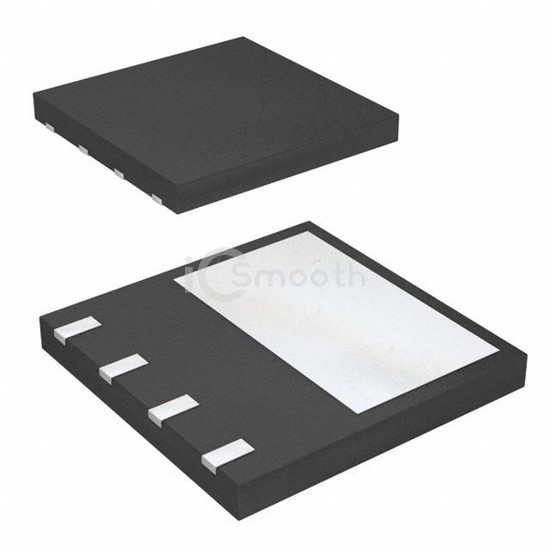

STL57N65M5 - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STL57N65M5 STMicroelectronics
STL57N65M5

STMicroelectronics

MOSFET N-CH 650V 4.3A 8POWERFLAT

STL57N65M5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 4.3A 8POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 3,711

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C4.3A (Ta), 22.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs69mOhm @ 20A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs110 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds4200 pF @ 100 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 189W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (8x8) HV
Package / Case8-PowerVDFN
