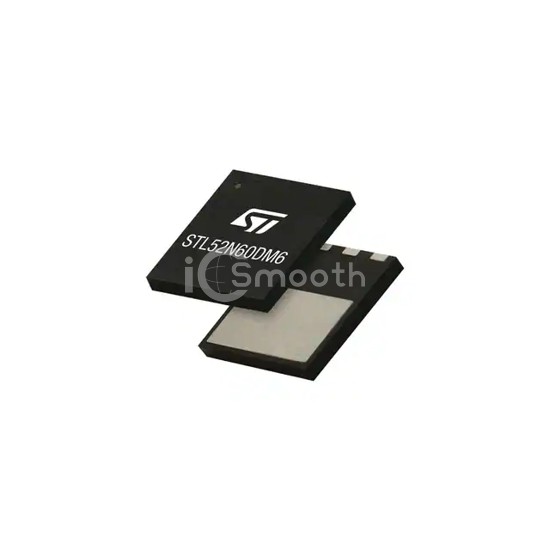

Name: STL52N60DM6
Brand: STMicroelectronics
SKU: STL52N60DM6
Price: 8.24 USD
Availability: InStock

REF: STL52N60DM6 STMicroelectronics

STL52N60DM6

N-CHANNEL 600 V, 0.084 OHM TYP.,

STL52N60DM6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. N-CHANNEL 600 V, 0.084 OHM TYP.,. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 288

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	84mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	52 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	2468 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	174W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (8x8) HV
Package / Case	8-PowerVDFN
