STL51N3LLH5

In Stock: 11

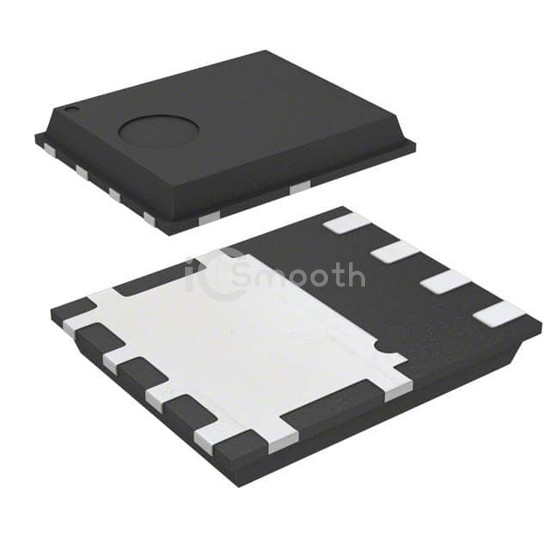

STL51N3LLH5 - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STL51N3LLH5 STMicroelectronics
STL51N3LLH5

STMicroelectronics

MOSFET N-CH 30V 51A POWERFLAT

STL51N3LLH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 30V 51A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 11

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C51A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs14.5mOhm @ 6.3A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5 nC @ 4.5 V
Vgs (Max)±22V
Input Capacitance (Ciss) (Max) @ Vds724 pF @ 25 V
FET Feature-
Power Dissipation (Max)62.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
