Name: STL4P2UH7
Brand: STMicroelectronics
SKU: STL4P2UH7
Availability: InStock

REF: STL4P2UH7 STMicroelectronics

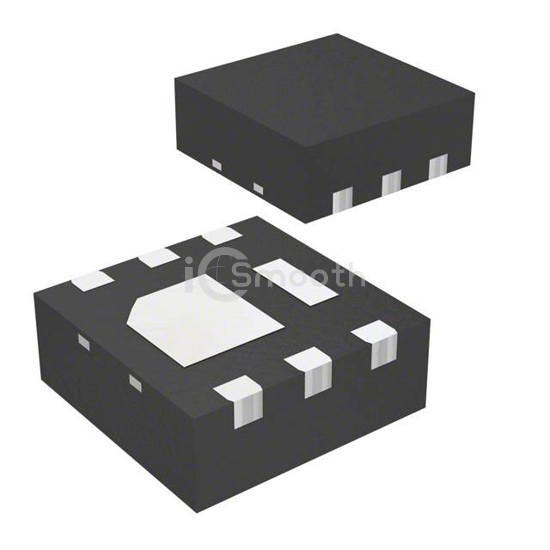

STL4P2UH7

MOSFET P-CH 20V 4A POWERFLAT

STL4P2UH7 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET P-CH 20V 4A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-PowerWDFN.

Datasheet Request a Quote

In Stock: 3,519

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	100mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.8 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	510 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.4W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (2x2)
Package / Case	6-PowerWDFN
