STL38N65M5

In Stock: 4,017

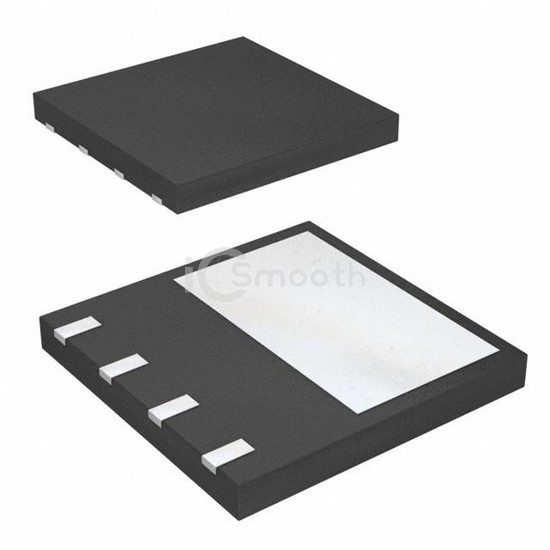

STL38N65M5 - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STL38N65M5 STMicroelectronics
STL38N65M5

STMicroelectronics

MOSFET N-CH 650V PWRFLAT HV

STL38N65M5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V PWRFLAT HV. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,017

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta), 22.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs105mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs71 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds3000 pF @ 100 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 150W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (8x8) HV
Package / Case8-PowerVDFN
