Name: STL35N75LF3
Brand: STMicroelectronics
SKU: STL35N75LF3
Price: 0.63 USD
Availability: InStock

REF: STL35N75LF3 STMicroelectronics

STL35N75LF3

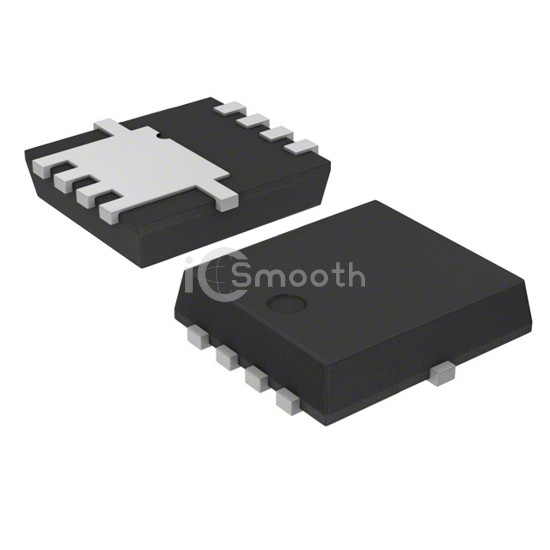

MOSFET N-CH 75V 32A POWERFLAT

STL35N75LF3 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 75V 32A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,414

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	25mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.5 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	800 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (3.3x3.3)
Package / Case	8-PowerVDFN
