Name: STL35N6F3
Brand: STMicroelectronics
SKU: STL35N6F3
Availability: InStock

REF: STL35N6F3 STMicroelectronics

STL35N6F3

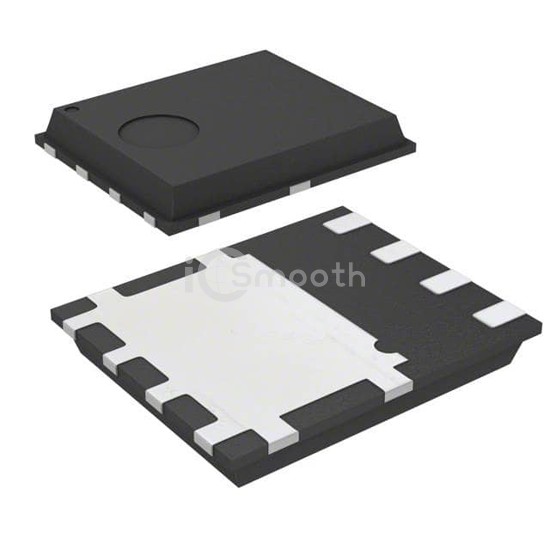

MOSFET N-CH 60V 35A POWERFLAT

STL35N6F3 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 60V 35A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,592

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	22mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	5W (Ta), 80W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6)
Package / Case	8-PowerVDFN
