Name: STL26NM60N
Brand: STMicroelectronics
SKU: STL26NM60N
Price: 3.90 USD
Availability: InStock

REF: STL26NM60N STMicroelectronics

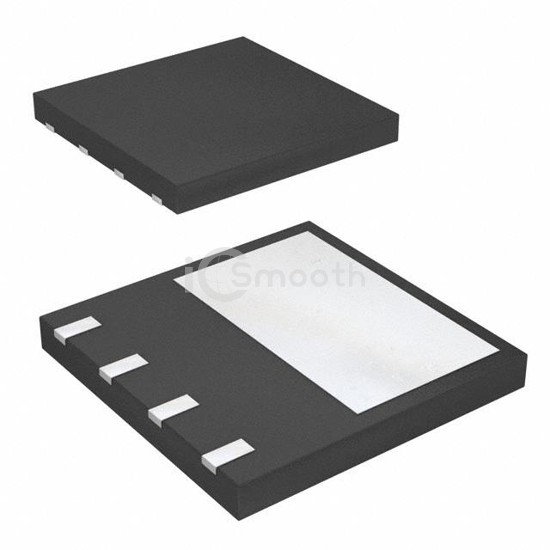

STL26NM60N

MOSFET N-CH 600V 19A POWERFLAT

STL26NM60N is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 19A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,498

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	2.7A (Ta), 19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	185mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	60 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1800 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	125mW (Ta), 3W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (8x8) HV
Package / Case	8-PowerVDFN
