STL26N60DM6

In Stock: 1

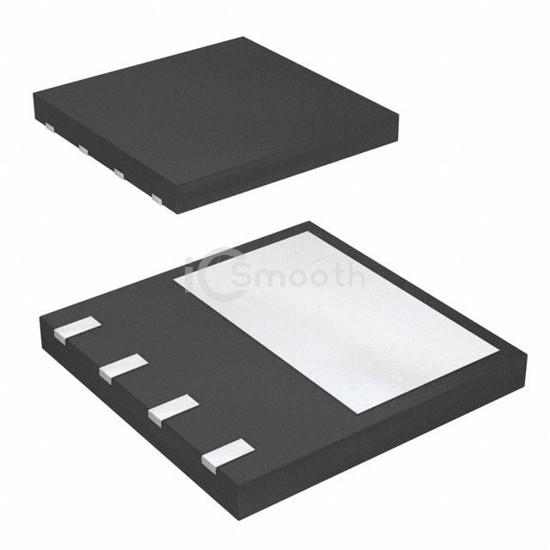

STL26N60DM6 - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STL26N60DM6 STMicroelectronics
STL26N60DM6

STMicroelectronics

MOSFET N-CH 600V 15A PWRFLAT HV

STL26N60DM6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 15A PWRFLAT HV. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 1

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs215mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds940 pF @ 100 V
FET Feature-
Power Dissipation (Max)110W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (8x8) HV
Package / Case8-PowerVDFN
