STL24NM60N

In Stock: 6,977

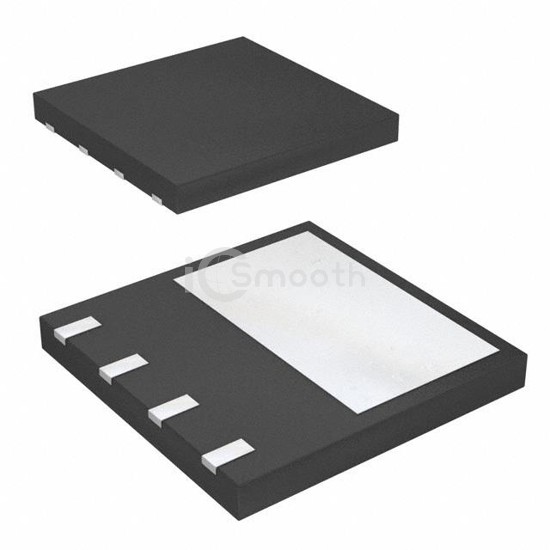

STL24NM60N - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STL24NM60N STMicroelectronics
STL24NM60N

STMicroelectronics

MOSFET N-CH 600V 16A POWERFLAT

STL24NM60N is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 16A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,977

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C3.3A (Ta), 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs215mOhm @ 8A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs46 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1400 pF @ 50 V
FET Feature-
Power Dissipation (Max)3W (Ta), 125W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (8x8) HV
Package / Case8-PowerVDFN
