Name: STL23NM60ND
Brand: STMicroelectronics
SKU: STL23NM60ND
Availability: InStock

REF: STL23NM60ND STMicroelectronics

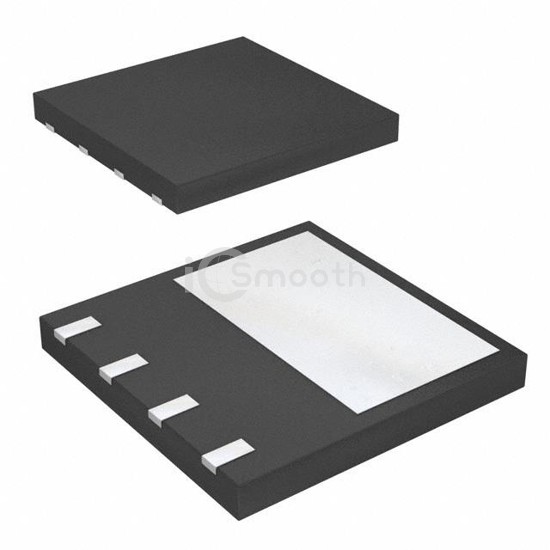

STL23NM60ND

MOSFET N-CH 600V 19.5A POWERFLAT

STL23NM60ND is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 19.5A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 8,098

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	19.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	180mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	70 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	2050 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 150W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (8x8) HV
Package / Case	8-PowerVDFN
