STL135N8F7AG

In Stock: 9,402

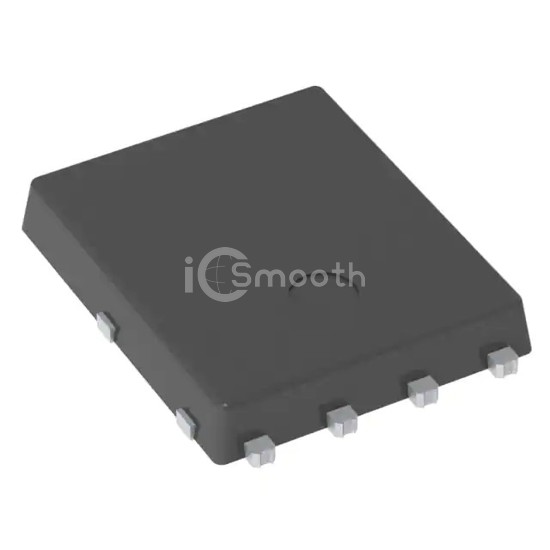

STL135N8F7AG - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STL135N8F7AG STMicroelectronics
STL135N8F7AG

STMicroelectronics

MOSFET N-CH 80V 130A POWERFLAT

STL135N8F7AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 80V 130A POWERFLAT. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 9,402

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C130A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3.6mOhm @ 13A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs103 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6800 pF @ 40 V
FET Feature-
Power Dissipation (Max)4.8W (Ta), 135W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
