STL120N4F6AG

In Stock: 7,768
STL120N4F6AG - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STL120N4F6AG STMicroelectronics
STL120N4F6AG

STMicroelectronics

MOSFET N-CH 40V 55A POWERFLAT

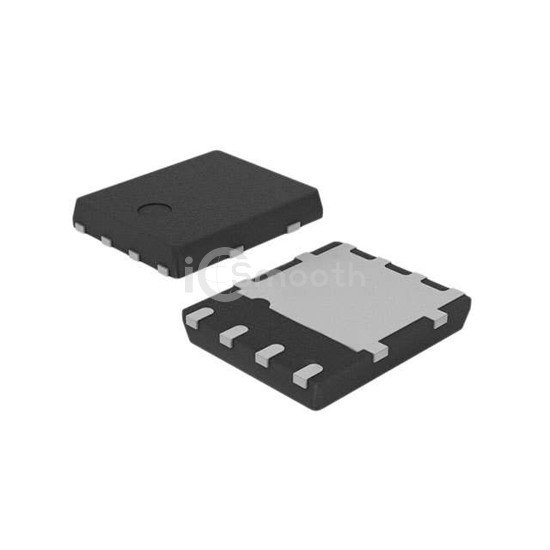

STL120N4F6AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 40V 55A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,768

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C55A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3.6mOhm @ 13A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs63 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3700 pF @ 25 V
FET Feature-
Power Dissipation (Max)96W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
