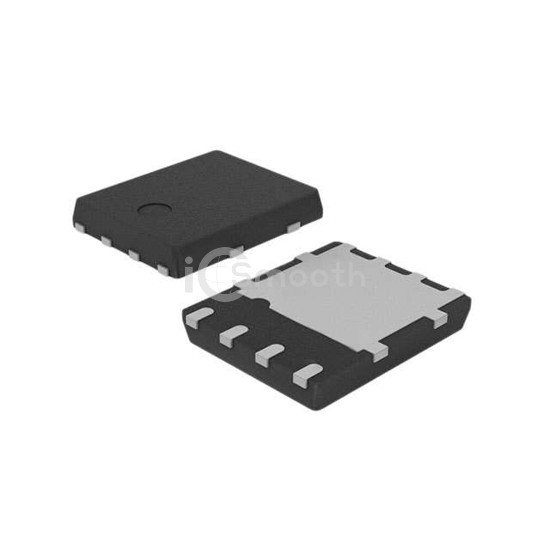

STL120N2VH5

STMicroelectronics

MOSFET N-CH 20V 120A POWERFLAT

STL120N2VH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 20V 120A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 2,616

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs3mOhm @ 14A, 4.5V
Vgs(th) (Max) @ Id700mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs29 nC @ 2.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds4660 pF @ 15 V
FET Feature-
Power Dissipation (Max)80W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
