Name: STL100N1VH5
Brand: STMicroelectronics
SKU: STL100N1VH5
Availability: InStock

REF: STL100N1VH5 STMicroelectronics

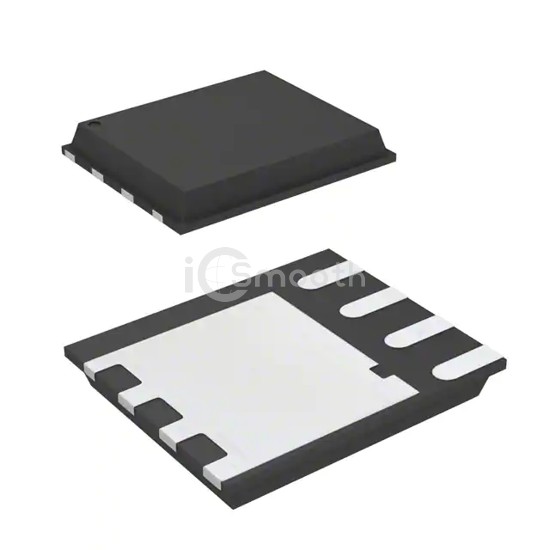

STL100N1VH5

MOSFET N-CH 12V 100A POWERFLAT

STL100N1VH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 12V 100A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 8,080

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	3mOhm @ 12.5A, 4.5V
Vgs(th) (Max) @ Id	500mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	26.5 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2085 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	60W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6)
Package / Case	8-PowerVDFN
