Name: STK38N3LLH5
Brand: STMicroelectronics
SKU: STK38N3LLH5
Availability: InStock

REF: STK38N3LLH5 STMicroelectronics

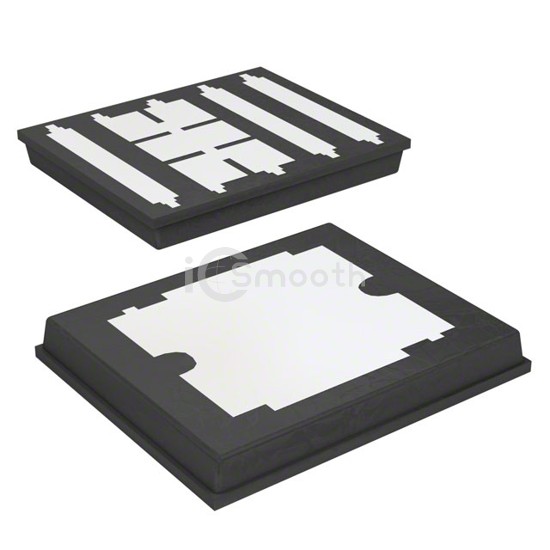

STK38N3LLH5

MOSFET N-CH 30V 38A POLARPAK

STK38N3LLH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 30V 38A POLARPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PolarPak®.

Datasheet Request a Quote

In Stock: 6,892

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.55mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	41.7 nC @ 4.5 V

Vgs (Max)	±22V
Input Capacitance (Ciss) (Max) @ Vds	4640 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	5.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PolarPak®
Package / Case	PolarPak®
