Name: STK20N75F3
Brand: STMicroelectronics
SKU: STK20N75F3
Availability: InStock

REF: STK20N75F3 STMicroelectronics

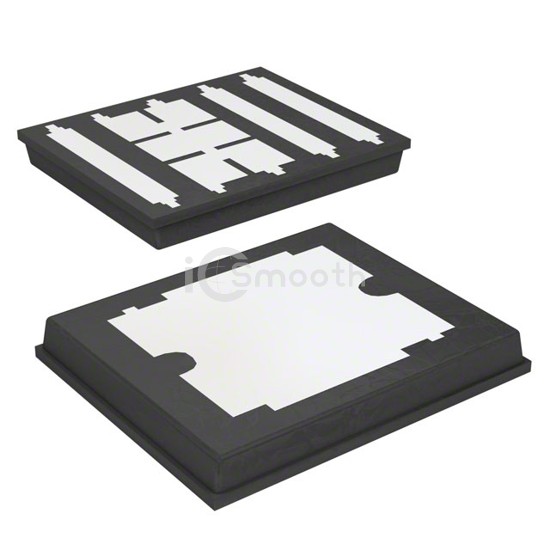

STK20N75F3

MOSFET N-CH 75V 20A POLARPAK

STK20N75F3 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 75V 20A POLARPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PolarPak®.

Datasheet Request a Quote

In Stock: 6,816

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	53 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3150 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	5.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PolarPak®
Package / Case	PolarPak®
