Name: STH80N10LF7-2AG
Brand: STMicroelectronics
SKU: STH80N10LF7-2AG
Price: 1.72 USD
Availability: InStock

REF: STH80N10LF7-2AG STMicroelectronics

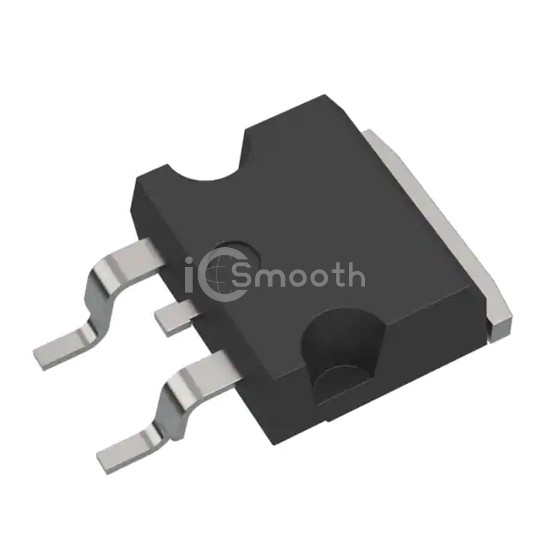

STH80N10LF7-2AG

STMicroelectronics

MOSFET N-CH 100V 80A H2PAK-2

STH80N10LF7-2AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 100V 80A H2PAK-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 3,730

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	28.3 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2900 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	110W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2Pak-2
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
