Name: STH52N10LF3-2AG
Brand: STMicroelectronics
SKU: STH52N10LF3-2AG
Availability: InStock

REF: STH52N10LF3-2AG STMicroelectronics

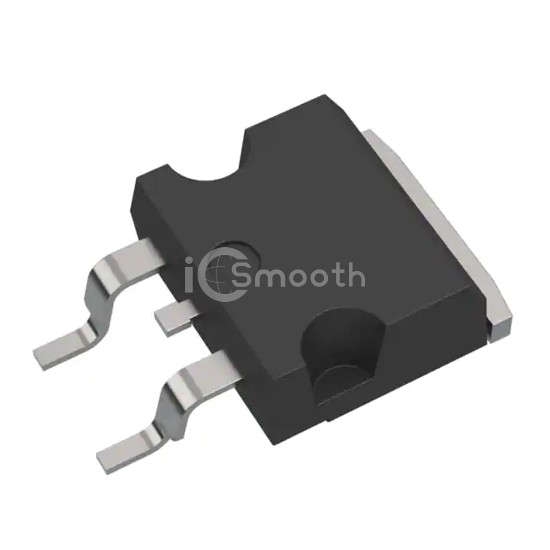

STH52N10LF3-2AG

MOSFET N-CH 100V 52A H2PAK-2

STH52N10LF3-2AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 100V 52A H2PAK-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Request a Quote

In Stock: 4,166

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	52A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	20mOhm @ 26A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18.5 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1900 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	110W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2Pak-2
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
