Name: STH3N150-2
Brand: STMicroelectronics
SKU: STH3N150-2
Price: 5.95 USD
Availability: InStock

REF: STH3N150-2 STMicroelectronics

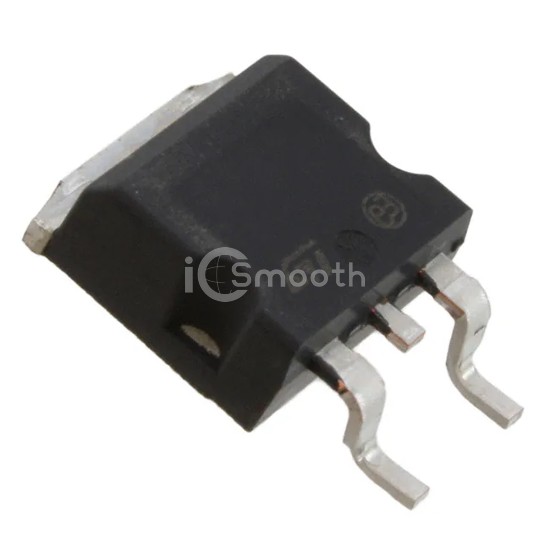

STH3N150-2

MOSFET N-CH 1500V 2.5A H2PAK

STH3N150-2 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 1500V 2.5A H2PAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab) Variant.

Datasheet Request a Quote

In Stock: 8,034

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1500 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	9Ohm @ 1.3A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29.3 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	939 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	140W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H²PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab) Variant
