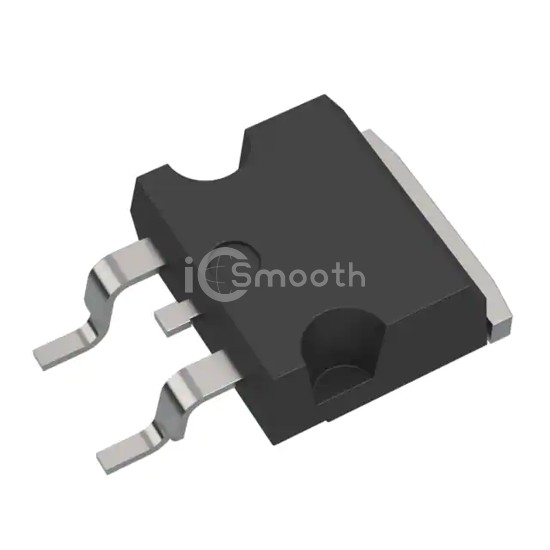

Name: STH22N95K5-2AG
Brand: STMicroelectronics
SKU: STH22N95K5-2AG
Price: 6.65 USD
Availability: InStock

REF: STH22N95K5-2AG STMicroelectronics

STH22N95K5-2AG

STMicroelectronics

MOSFET

STH22N95K5-2AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Request a Quote

In Stock: 6,733

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	950 V
Current - Continuous Drain (Id) @ 25°C	17.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	330mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	48 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1550 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	250W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2Pak-2
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
