Name: STH15NB50FI
Brand: STMicroelectronics
SKU: STH15NB50FI
Availability: InStock

REF: STH15NB50FI STMicroelectronics

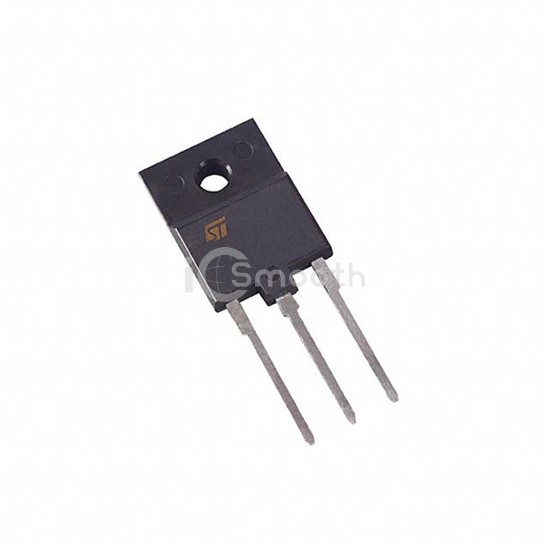

STH15NB50FI

MOSFET N-CH 500V 10.5A ISOWAT218

STH15NB50FI is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 500V 10.5A ISOWAT218. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case ISOWATT-218-3.

Datasheet Request a Quote

In Stock: 9,472

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	10.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	360mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	80W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOWATT-218
Package / Case	ISOWATT-218-3
