Name: STH140N6F7-6
Brand: STMicroelectronics
SKU: STH140N6F7-6
Availability: InStock

REF: STH140N6F7-6 STMicroelectronics

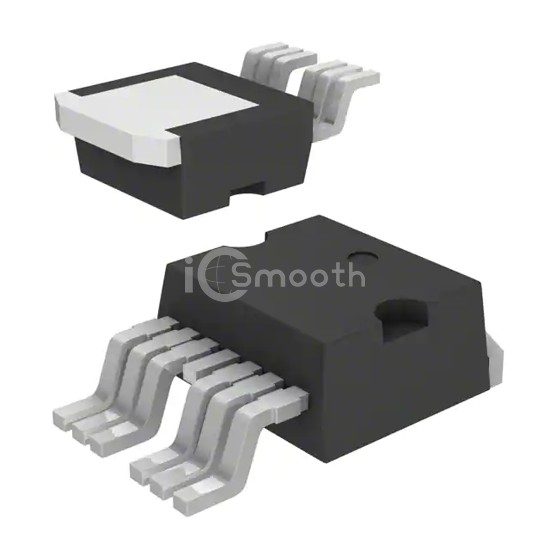

STH140N6F7-6

MOSFET N-CH 60V 80A H2PAK-6

STH140N6F7-6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 60V 80A H2PAK-6. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Request a Quote

In Stock: 2,741

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	55 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3100 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	158W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2PAK-6
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
