STGAP2SICSNTR

In Stock: 165

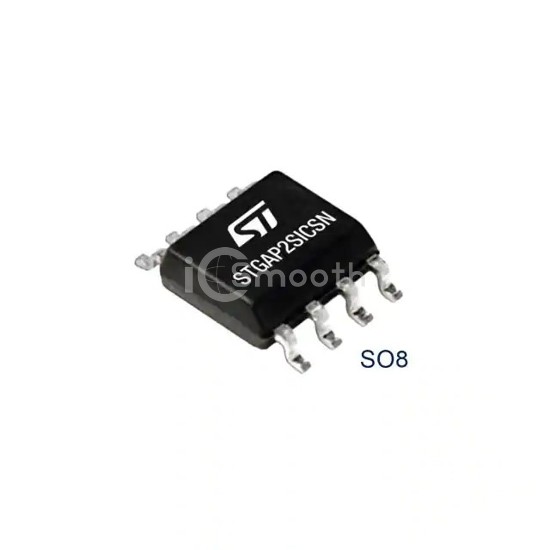

STGAP2SICSNTR - STMicroelectronics - Isolators - Gate Drivers
REF: STGAP2SICSNTR STMicroelectronics
STGAP2SICSNTR

STMicroelectronics

GALVANICALLY ISOLATED 4 A SINGLE

STGAP2SICSNTR is a Isolators - Gate Drivers manufactured by STMicroelectronics. GALVANICALLY ISOLATED 4 A SINGLE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), approval agency UL.

Request a Quote

In Stock: 165

Tiered Pricing USD
1+ $4.2500 —
10+ $3.2200 -24%
25+ $2.9624 -30%
100+ $2.6790 -37%
250+ $2.5440 -40%
500+ $2.4626 -42%
1,000+ $2.3957 -44% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation4000Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)90ns, 90ns
Pulse Width Distortion (Max)20ns
Rise / Fall Time (Typ)30ns, 30ns
Current - Output High, Low4A, 4A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply16.4V ~ 26V
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO
Approval AgencyUL
