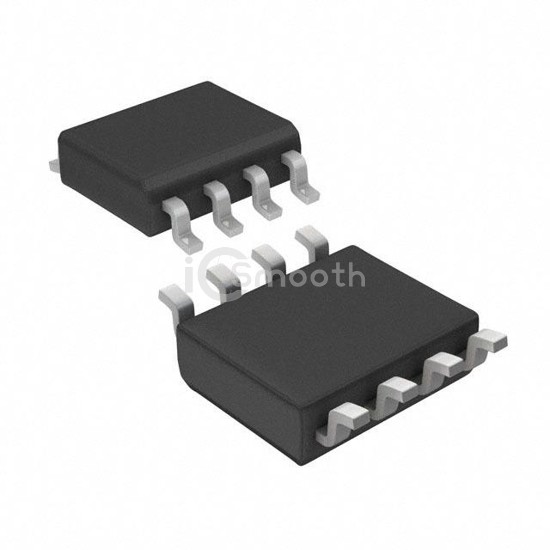

Name: STGAP2SCMTR
Brand: STMicroelectronics
SKU: STGAP2SCMTR
Price: 1.96 USD
Availability: InStock

REF: STGAP2SCMTR STMicroelectronics

STGAP2SCMTR

DGTL ISO

STGAP2SCMTR is a Isolators - Gate Drivers manufactured by STMicroelectronics. DGTL ISO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,350

Tiered Pricing USD

1+ $1.9600 —

10+ $1.4470 -26%

25+ $1.3180 -33%

100+ $1.1762 -40%

250+ $1.1085 -43%

500+ $1.0677 -46%

1,000+ $1.0341 -47% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Number of Channels	1
Voltage - Isolation	1700VDC
Common Mode Transient Immunity (Min)	100V/ns
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Pulse Width Distortion (Max)	20ns
Rise / Fall Time (Typ)	30ns, 30ns
Current - Output High, Low	4A, 4A

Current - Peak Output	-
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO
Approval Agency	-
