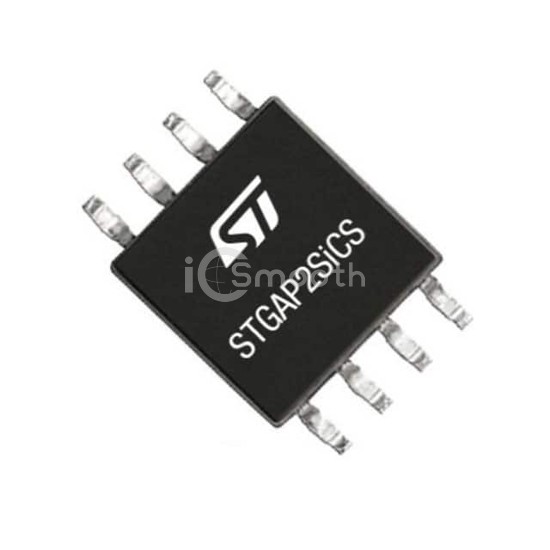

Name: STGAP2SICSC
Brand: STMicroelectronics
SKU: STGAP2SICSC
Price: 5.27 USD
Availability: InStock

REF: STGAP2SICSC STMicroelectronics

STGAP2SICSC

GALVANICALLY ISOLATED 4 A SINGLE

STGAP2SICSC is a Isolators - Gate Drivers manufactured by STMicroelectronics. GALVANICALLY ISOLATED 4 A SINGLE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency UL.

Request a Quote

In Stock: 10

Tiered Pricing USD

1+ $5.2700 —

10+ $4.0240 -24%

80+ $3.4156 -35%

160+ $3.2799 -38%

320+ $3.1683 -40%

560+ $3.0926 -41%

1,040+ $3.0218 -43%

2,560+ $2.9383 -44% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100V/ns
Propagation Delay tpLH / tpHL (Max)	90ns, 90ns
Pulse Width Distortion (Max)	20ns
Rise / Fall Time (Typ)	30ns, 30ns
Current - Output High, Low	4A, 4A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package	8-SO
Approval Agency	UL
