Name: STGAP2SICS
Brand: STMicroelectronics
SKU: STGAP2SICS
Price: 3.08 USD
Availability: InStock

REF: STGAP2SICS STMicroelectronics

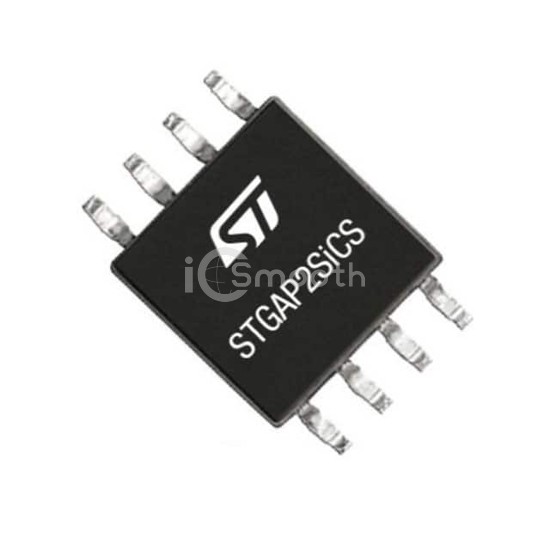

STGAP2SICS

GALVANICALLY ISOLATED 4 A SINGLE

STGAP2SICS is a Isolators - Gate Drivers manufactured by STMicroelectronics. GALVANICALLY ISOLATED 4 A SINGLE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency UL.

Request a Quote

In Stock: 213

Tiered Pricing USD

1+ $3.0800 —

10+ $2.3050 -25%

80+ $1.9289 -37%

160+ $1.8448 -40%

320+ $1.7756 -42%

560+ $1.7287 -44%

1,040+ $1.6848 -45%

2,560+ $1.6331 -47%

5,040+ $1.6020 -48% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100V/ns
Propagation Delay tpLH / tpHL (Max)	90ns, 90ns
Pulse Width Distortion (Max)	20ns
Rise / Fall Time (Typ)	30ns, 30ns
Current - Output High, Low	4A, 4A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package	8-SO
Approval Agency	UL
