STGAP2SICDTR

In Stock: 171

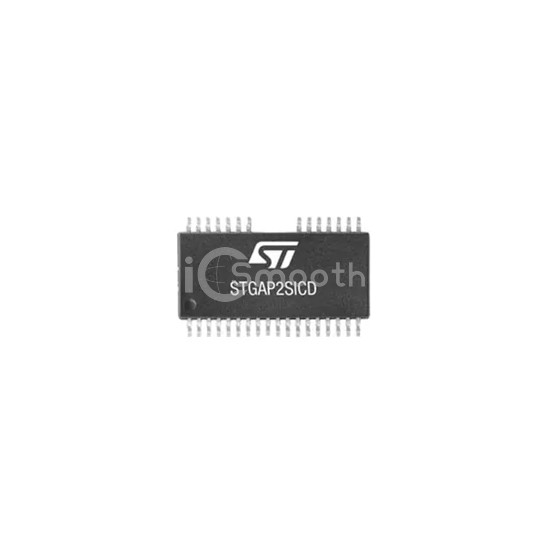

STGAP2SICDTR - STMicroelectronics - Isolators - Gate Drivers
REF: STGAP2SICDTR STMicroelectronics
STGAP2SICDTR

STMicroelectronics

GALVANICALLY ISOLATED 4 A DUAL G

STGAP2SICDTR is a Isolators - Gate Drivers manufactured by STMicroelectronics. GALVANICALLY ISOLATED 4 A DUAL G. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 36-BSOP (0.295", 7.50mm Width), 32 Leads, approval agency UL, VDE.

Request a Quote

In Stock: 171

Tiered Pricing USD
1+ $3.1500 —
10+ $2.3640 -25%
25+ $2.1664 -31%
100+ $1.9494 -38%
250+ $1.8460 -41%
500+ $1.7836 -43% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation6000Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)90ns, 90ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)30ns, 30ns
Current - Output High, Low4A, 4A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply3.1V ~ 5.5V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case36-BSOP (0.295", 7.50mm Width), 32 Leads
Supplier Device Package36-SO
Approval AgencyUL, VDE
