STGAP2SCM

In Stock: 7,329

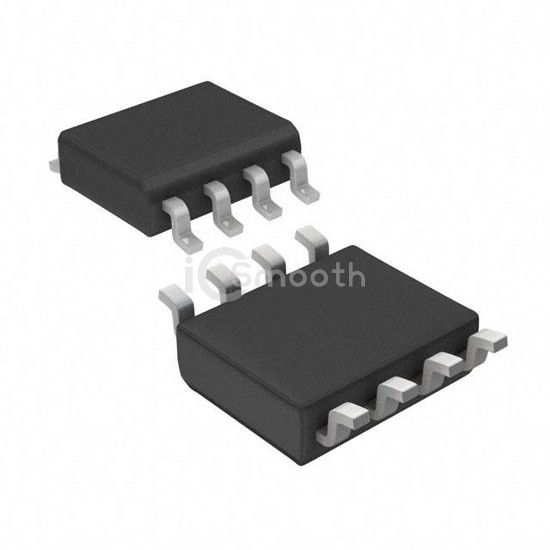

STGAP2SCM - STMicroelectronics - Isolators - Gate Drivers
REF: STGAP2SCM STMicroelectronics
STGAP2SCM

STMicroelectronics

DGTL ISO

STGAP2SCM is a Isolators - Gate Drivers manufactured by STMicroelectronics. DGTL ISO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 7,329

Tiered Pricing USD
2,000+ $2.1586 —
4,000+ $2.1161 -2% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation1700VDC
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Pulse Width Distortion (Max)20ns
Rise / Fall Time (Typ)30ns, 30ns
Current - Output High, Low4A, 4A
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply3V ~ 5.5V
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO
Approval Agency-
