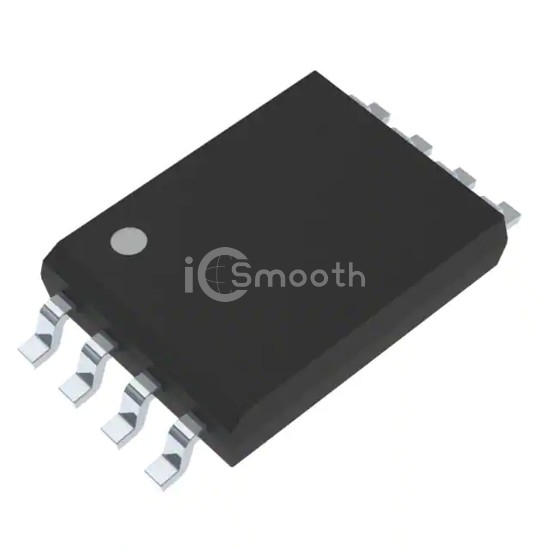

STGAP2HSCMTR - STMicroelectronics - Isolators - Gate Drivers
REF: STGAP2HSCMTR STMicroelectronics
STGAP2HSCMTR

STMicroelectronics

GALVANICALLY ISOLATED 4 A SINGLE

STGAP2HSCMTR is a Isolators - Gate Drivers manufactured by STMicroelectronics. GALVANICALLY ISOLATED 4 A SINGLE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency UL.

Request a Quote

In Stock: 708

Tiered Pricing USD
1+ $2.6100 —
10+ $1.9420 -26%
25+ $1.7756 -32%
100+ $1.5923 -39%
250+ $1.5050 -42%
500+ $1.4524 -44% BEST

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)100V/ns
Propagation Delay tpLH / tpHL (Max)90ns, 90ns
Pulse Width Distortion (Max)20ns
Rise / Fall Time (Typ)30ns, 30ns
Current - Output High, Low4A, 4A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply3V ~ 5.5V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device Package8-SO
Approval AgencyUL
