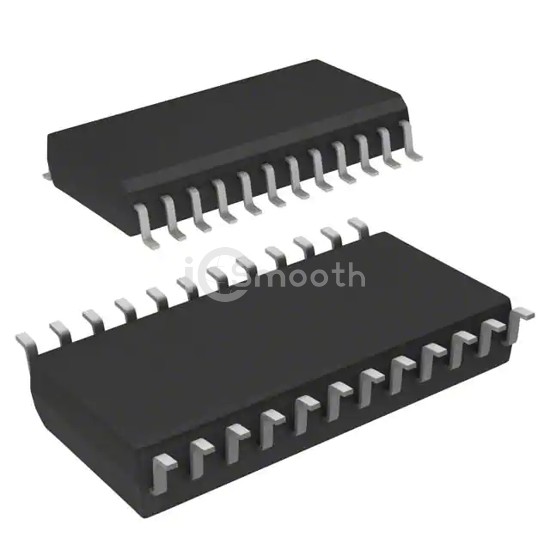

STGAP1S - STMicroelectronics - Isolators - Gate Drivers
REF: STGAP1S STMicroelectronics
STGAP1S

STMicroelectronics

DGTL ISO 2.5KV 1CH GATE DVR 24SO

STGAP1S is a Isolators - Gate Drivers manufactured by STMicroelectronics. DGTL ISO 2.5KV 1CH GATE DVR 24SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-SOIC (0.295", 7.50mm Width), approval agency UL.

Datasheet Request a Quote

In Stock: 4,470

Specifications

18 parameters
Product StatusObsolete
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)-
Propagation Delay tpLH / tpHL (Max)130ns, 130ns
Pulse Width Distortion (Max)10ns
Rise / Fall Time (Typ)25ns, 25ns (Max)
Current - Output High, Low2.5A, 2.5A
Current - Peak Output-
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply4.5V ~ 36V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case24-SOIC (0.295", 7.50mm Width)
Supplier Device Package24-SO
Approval AgencyUL
