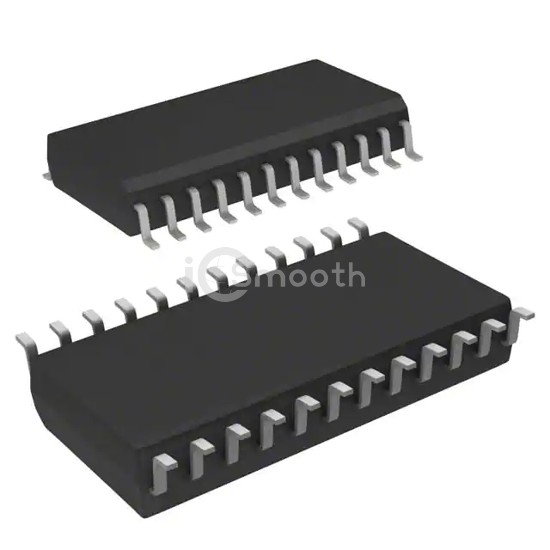

Name: STGAP1ASTR
Brand: STMicroelectronics
SKU: STGAP1ASTR
Price: 3.44 USD
Availability: InStock

REF: STGAP1ASTR STMicroelectronics

STGAP1ASTR

DGTL ISO 2.5KV 1CH GATE DVR 24SO

STGAP1ASTR is a Isolators - Gate Drivers manufactured by STMicroelectronics. DGTL ISO 2.5KV 1CH GATE DVR 24SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 9,840

Tiered Pricing USD

1,000+ $3.4366 —

2,000+ $3.3625 -2%

3,000+ $3.3254 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Technology	Magnetic Coupling
Number of Channels	1
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	-
Propagation Delay tpLH / tpHL (Max)	130ns, 130ns
Pulse Width Distortion (Max)	10ns
Rise / Fall Time (Typ)	25ns, 25ns (Max)
Current - Output High, Low	2.5A, 2.5A

Current - Peak Output	-
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	4.5V ~ 36V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package	24-SO
Approval Agency	-
