Name: STG6684QTR
Brand: STMicroelectronics
SKU: STG6684QTR
Price: 0.61 USD
Availability: InStock

REF: STG6684QTR STMicroelectronics

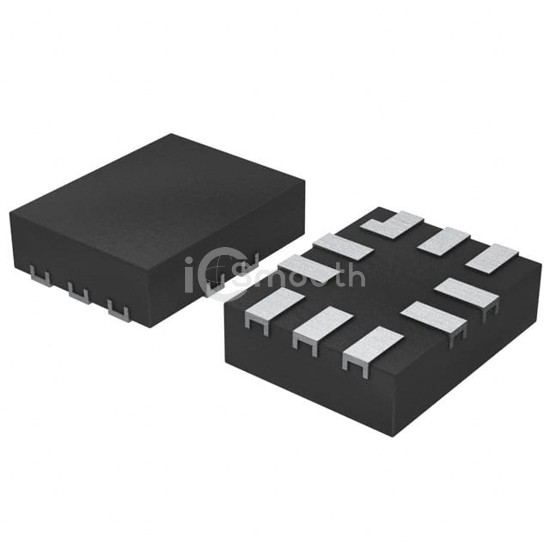

STG6684QTR

IC SWITCH DUAL SPDT 10QFN

STG6684QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,838

Tiered Pricing USD

3,000+ $0.6142 —

6,000+ $0.6005 -2%

9,000+ $0.5936 -3%

15,000+ $0.5860 -5% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	550mOhm
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	55ns, 30ns

-3db Bandwidth	65MHz
Charge Injection	49pC
Channel Capacitance (CS(off), CD(off))	85pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-85dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
