Name: STG5682QTR
Brand: STMicroelectronics
SKU: STG5682QTR
Price: 2.22 USD
Availability: InStock

REF: STG5682QTR STMicroelectronics

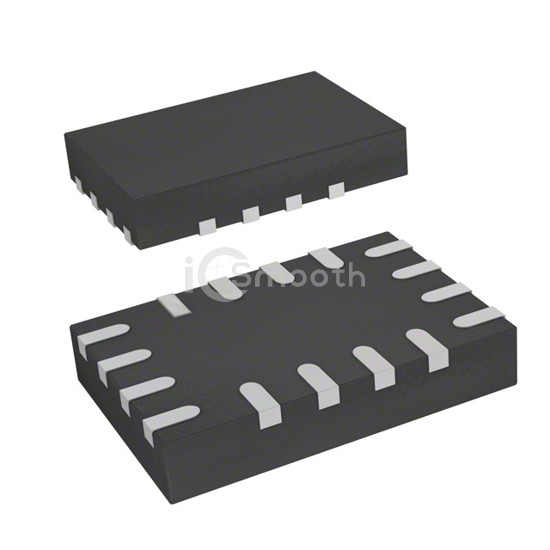

STG5682QTR

IC SWITCH DUAL SPDT 16QFN

STG5682QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,581

Tiered Pricing USD

1+ $2.2200 —

10+ $1.6470 -26%

25+ $1.5028 -32%

100+ $1.3441 -39%

250+ $1.2684 -43%

500+ $1.2227 -45%

1,000+ $1.1851 -47% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	550mOhm
Channel-to-Channel Matching (ΔRon)	15mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	80ns, 50ns

-3db Bandwidth	33MHz
Charge Injection	126pC
Channel Capacitance (CS(off), CD(off))	6pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-60dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-QFN (2.6x1.8)
