Name: STG5223QTR
Brand: STMicroelectronics
SKU: STG5223QTR
Price: 0.57 USD
Availability: InStock

REF: STG5223QTR STMicroelectronics

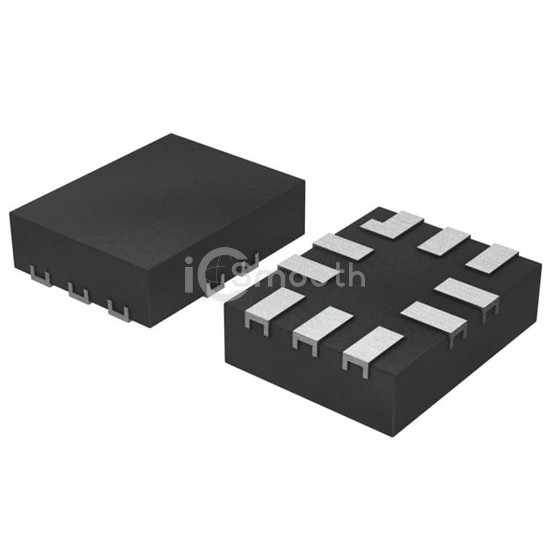

STG5223QTR

IC SWITCH DUAL SPDT 10QFN

STG5223QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,319

Tiered Pricing USD

3,000+ $0.5652 —

6,000+ $0.5524 -2%

9,000+ $0.5460 -3%

15,000+ $0.5389 -5% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	55ns, 30ns

-3db Bandwidth	55MHz
Charge Injection	49pC
Channel Capacitance (CS(off), CD(off))	40pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-72dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
