Name: STG5123DTR
Brand: STMicroelectronics
SKU: STG5123DTR
Availability: InStock

REF: STG5123DTR STMicroelectronics

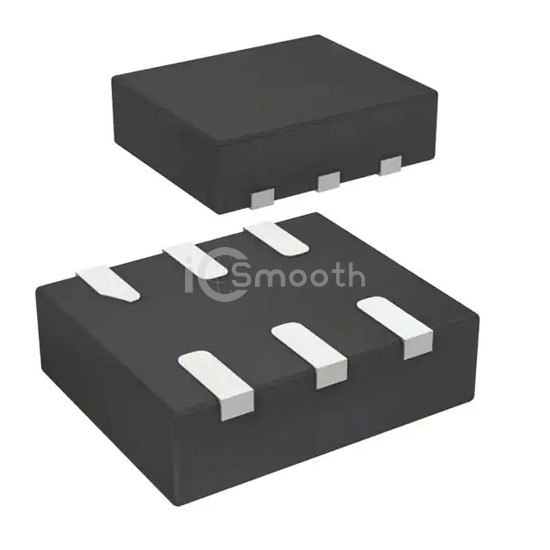

STG5123DTR

IC SWITCH SPDT 6DFN

STG5123DTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SPDT 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 9,930

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	1.2Ohm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	28ns, 21ns

-3db Bandwidth	150MHz
Charge Injection	33pC
Channel Capacitance (CS(off), CD(off))	25pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-80dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-DFN (1.2x1)
