Name: STG4260BJR
Brand: STMicroelectronics
SKU: STG4260BJR
Price: 0.30 USD
Availability: InStock

REF: STG4260BJR STMicroelectronics

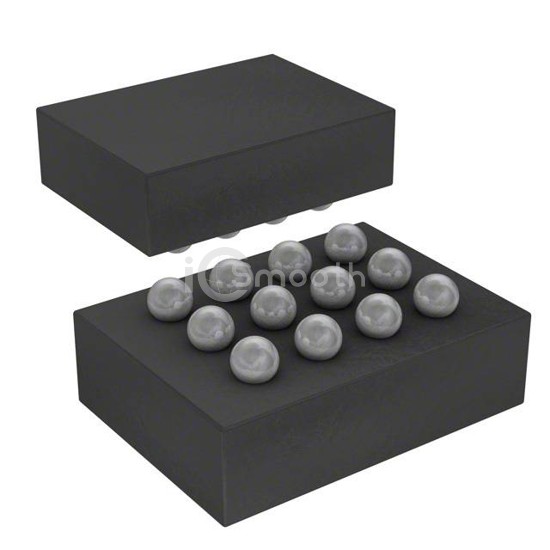

STG4260BJR

IC SWITCH DUAL SPDT 12FLIPCHIP

STG4260BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 12FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, FCBGA, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,093

Tiered Pricing USD

5,000+ $0.2974 —

10,000+ $0.2908 -2%

15,000+ $0.2875 -3%

25,000+ $0.2838 -5%

35,000+ $0.2816 -5% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.8V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	38ns, 38ns

-3db Bandwidth	50MHz
Charge Injection	140pC
Channel Capacitance (CS(off), CD(off))	30pF
Current - Leakage (IS(off)) (Max)	30nA
Crosstalk	-67dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, FCBGA
Supplier Device Package	12-FlipChip
