Name: STG4160BJR
Brand: STMicroelectronics
SKU: STG4160BJR
Price: 1.10 USD
Availability: InStock

REF: STG4160BJR STMicroelectronics

STG4160BJR

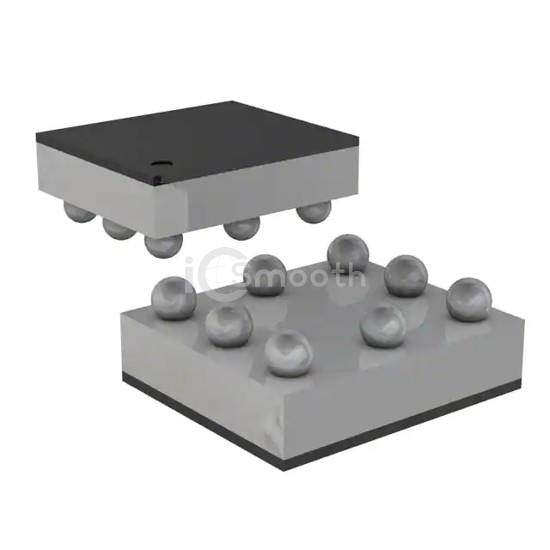

IC SWITCH SGL SPDT 2:1 8FLIPCHIP

STG4160BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SGL SPDT 2:1 8FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFBGA, FCBGA, number of circuits 1.

Datasheet Request a Quote

In Stock: 5,767

Tiered Pricing USD

1+ $1.1000 —

10+ $0.9810 -11%

25+ $0.9308 -15%

100+ $0.7647 -30%

250+ $0.7148 -35%

500+ $0.6317 -43%

1,000+ $0.4987 -55%

2,500+ $0.4655 -58% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.8V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	38ns, 38ns

-3db Bandwidth	50MHz
Charge Injection	162pC
Channel Capacitance (CS(off), CD(off))	30pF
Current - Leakage (IS(off)) (Max)	30nA
Crosstalk	-67dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-UFBGA, FCBGA
Supplier Device Package	8-FlipChip
