Name: STG4159BJR
Brand: STMicroelectronics
SKU: STG4159BJR
Price: 0.65 USD
Availability: InStock

REF: STG4159BJR STMicroelectronics

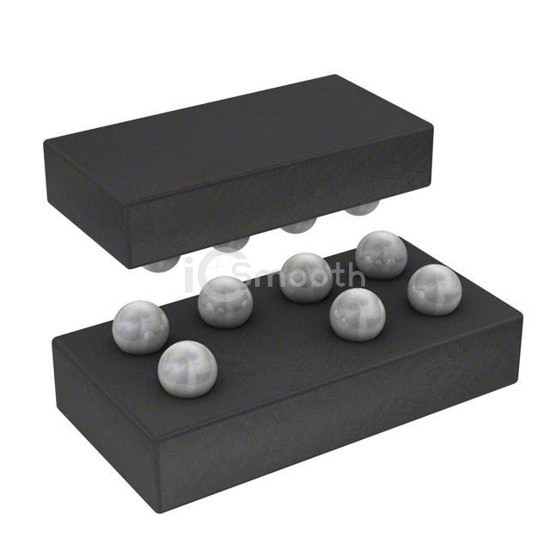

STG4159BJR

IC SWITCH SPDT 7CLIPCHIP

STG4159BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SPDT 7CLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 7-WFBGA, FCBGA, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,535

Tiered Pricing USD

5,000+ $0.6481 —

10,000+ $0.6355 -2%

15,000+ $0.6292 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	300mOhm
Channel-to-Channel Matching (ΔRon)	3mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.8V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	38ns, 17ns

-3db Bandwidth	28MHz
Charge Injection	140pC
Channel Capacitance (CS(off), CD(off))	30pF
Current - Leakage (IS(off)) (Max)	30nA
Crosstalk	-69dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	7-WFBGA, FCBGA
Supplier Device Package	7-FlipChip
