Name: STG4158BJR
Brand: STMicroelectronics
SKU: STG4158BJR
Availability: InStock

REF: STG4158BJR STMicroelectronics

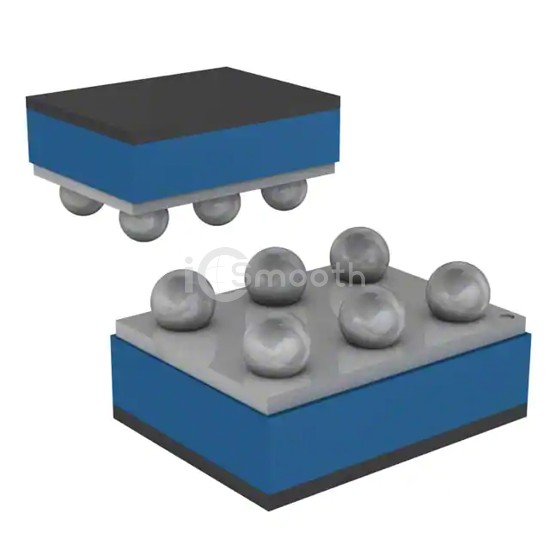

STG4158BJR

IC SWITCH SPDT 6FLIPCHIP

STG4158BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SPDT 6FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-WFBGA, FCBGA, number of circuits 1.

Datasheet Request a Quote

In Stock: 4,101

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	600mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	28ns, 13ns

-3db Bandwidth	40MHz
Charge Injection	230pC
Channel Capacitance (CS(off), CD(off))	30pF
Current - Leakage (IS(off)) (Max)	30nA
Crosstalk	-61dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-WFBGA, FCBGA
Supplier Device Package	6-FlipChip (1.23x0.83)
