Name: STG3856QTR
Brand: STMicroelectronics
SKU: STG3856QTR
Price: 1.14 USD
Availability: InStock

REF: STG3856QTR STMicroelectronics

STG3856QTR

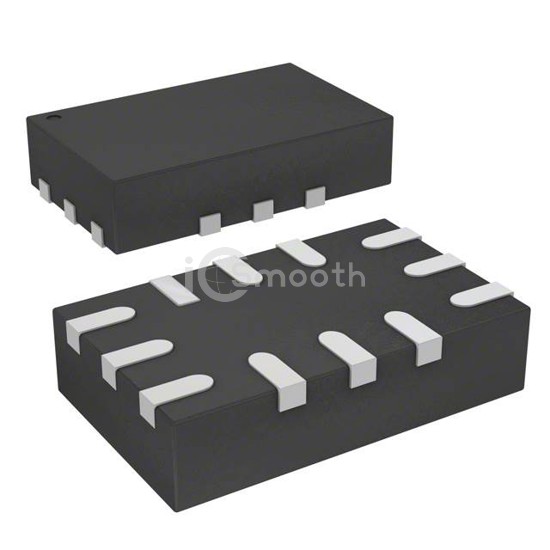

IC SWITCH DUAL SP3T 12QFN

STG3856QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SP3T 12QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 12-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,000

Tiered Pricing USD

1+ $1.1400 —

10+ $0.8230 -28%

25+ $0.7436 -35%

100+ $0.6568 -42%

250+ $0.6154 -46%

500+ $0.5904 -48%

1,000+ $0.5699 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP3T
Multiplexer/Demultiplexer Circuit	3:1
Number of Circuits	2
On-State Resistance (Max)	1Ohm
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	40ns, 20ns

-3db Bandwidth	100MHz
Charge Injection	55pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-84dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	12-UFQFN
Supplier Device Package	12-QFN (2.2x1.4)
