Name: STG3820BJR
Brand: STMicroelectronics
SKU: STG3820BJR
Price: 1.73 USD
Availability: InStock

REF: STG3820BJR STMicroelectronics

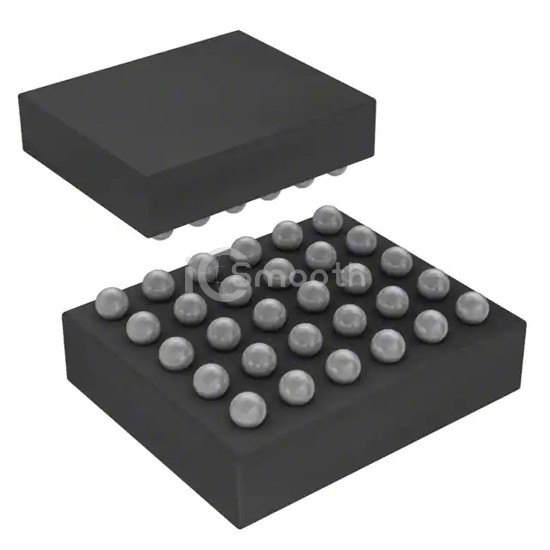

STG3820BJR

IC SWITCH QUAD DPDT 30FLIPCHIP

STG3820BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD DPDT 30FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 30-WFBGA, FCBGA, number of circuits 4.

Datasheet Request a Quote

In Stock: 318

Tiered Pricing USD

1+ $1.7300 —

10+ $1.2730 -26%

25+ $1.1572 -33%

100+ $1.0304 -40%

250+ $0.9698 -44%

500+ $0.9333 -46%

1,000+ $0.9033 -48%

2,500+ $0.8715 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	4
On-State Resistance (Max)	5.8Ohm
Channel-to-Channel Matching (ΔRon)	300mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	15ns, 13ns

-3db Bandwidth	800MHz
Charge Injection	6.4pC
Channel Capacitance (CS(off), CD(off))	2pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-78dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	30-WFBGA, FCBGA
Supplier Device Package	FlipChip 30
