Name: STG3699QTR
Brand: STMicroelectronics
SKU: STG3699QTR
Price: 1.58 USD
Availability: InStock

REF: STG3699QTR STMicroelectronics

STG3699QTR

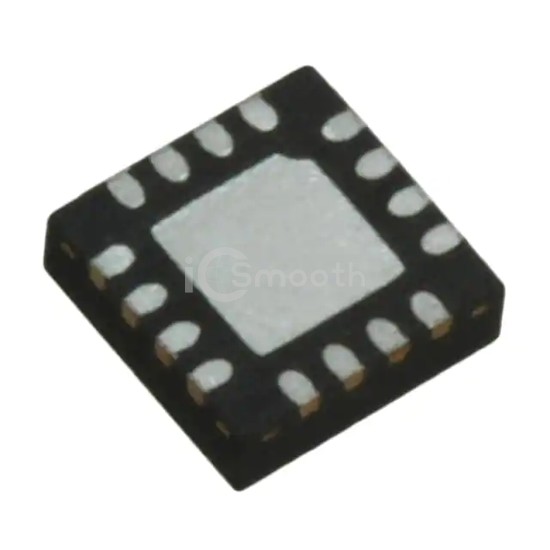

IC SWITCH QUAD SPDT 16QFN

STG3699QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 9,562

Tiered Pricing USD

3,000+ $1.5763 —

6,000+ $1.5467 -2% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	60mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 30ns

-3db Bandwidth	50MHz
Charge Injection	35pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-54dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-QFN (3x3)
