Name: STG3699BVTR
Brand: STMicroelectronics
SKU: STG3699BVTR
Price: 0.39 USD
Availability: InStock

REF: STG3699BVTR STMicroelectronics

STG3699BVTR

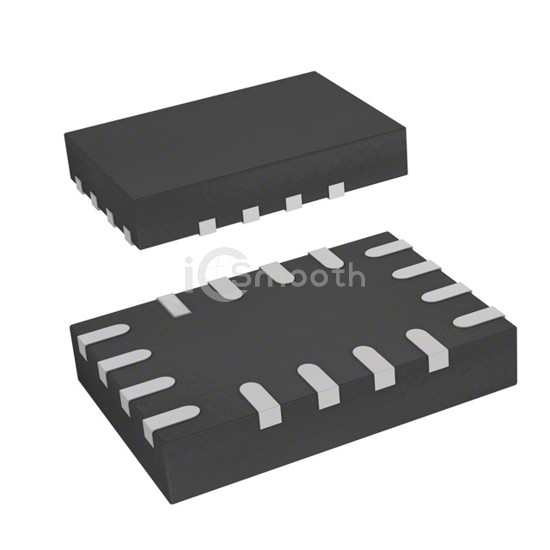

IC SWITCH QUAD SPDT 16QFN

STG3699BVTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 4.

Datasheet Request a Quote

In Stock: 6,421

Tiered Pricing USD

3,000+ $0.3942 —

6,000+ $0.3847 -2%

9,000+ $0.3799 -4%

15,000+ $0.3746 -5%

21,000+ $0.3715 -6% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	55ns, 30ns

-3db Bandwidth	40MHz
Charge Injection	57pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-72dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-QFN (2.6x1.8)
