Name: STG3693QTR
Brand: STMicroelectronics
SKU: STG3693QTR
Price: 2.04 USD
Availability: InStock

REF: STG3693QTR STMicroelectronics

STG3693QTR

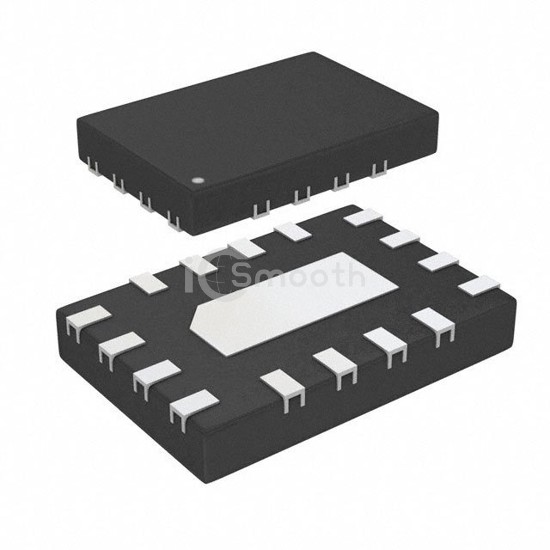

IC SWITCH QUAD SPDT 16QFN

STG3693QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-UFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 2,717

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	5.2Ohm
Channel-to-Channel Matching (ΔRon)	300mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	15ns, 5ns

-3db Bandwidth	800MHz
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-78dB @ 1MHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN Exposed Pad
Supplier Device Package	16-QFN (2.6x1.8)
