Name: STG3684ADTR
Brand: STMicroelectronics
SKU: STG3684ADTR
Price: 1.05 USD
Availability: InStock

REF: STG3684ADTR STMicroelectronics

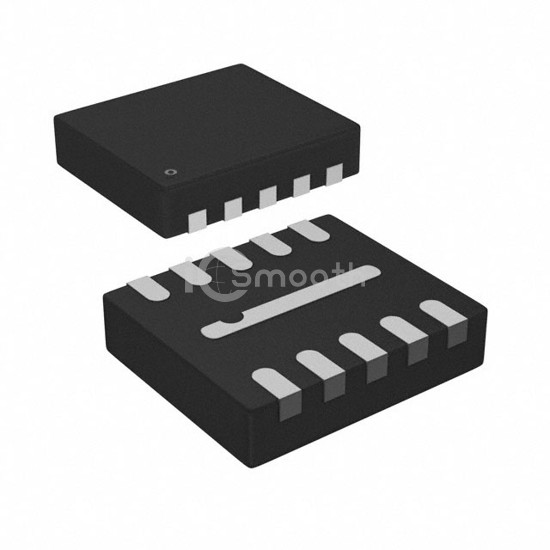

STG3684ADTR

IC SWITCH DUAL SPDT 10UFDFN

STG3684ADTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 10UFDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,663

Tiered Pricing USD

3,000+ $1.0469 —

6,000+ $1.0257 -2%

9,000+ $1.0151 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	55ns, 30ns

-3db Bandwidth	55MHz
Charge Injection	49pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-72dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFDFN Exposed Pad
Supplier Device Package	10-DFN (2.3x2.0)
